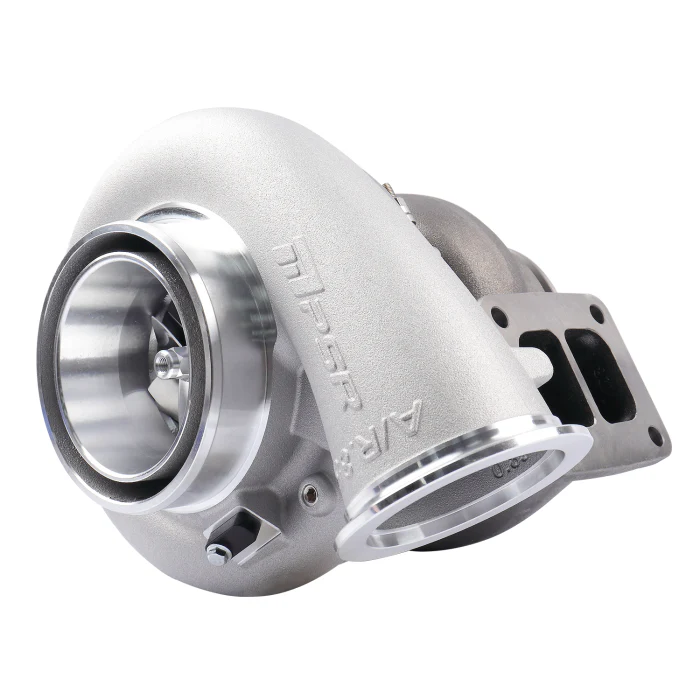

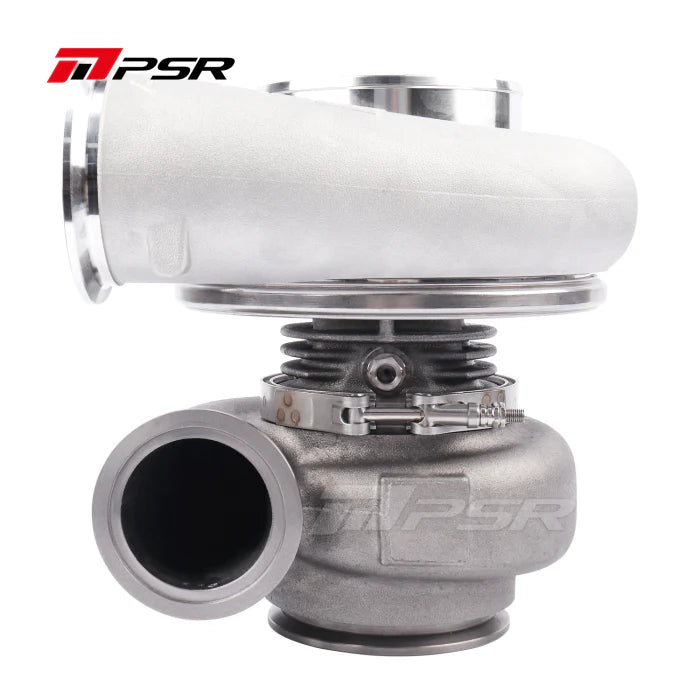

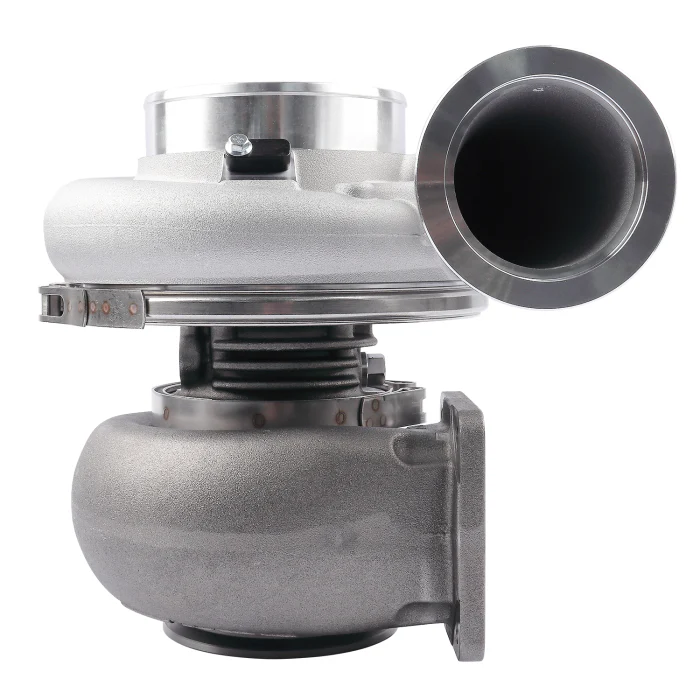

PSR PTE 7685E Ball Bearing Turbo UP to 1500HP

PSR PTE 7685E Ball Bearing Turbo UP to 1500HP

SKU:

$2,099.00

$2,099.00

Sale Sold out

Turbine Housing Options T4 Divided 1.28 A/R Dual V Band 1.15 A/R Dual V Band 1.28 A/R Without Turbine Housing

Compressor Housing Options Standard

Quantity

Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
Billet Compressor Wheel with Extended Tapered Tip Technology

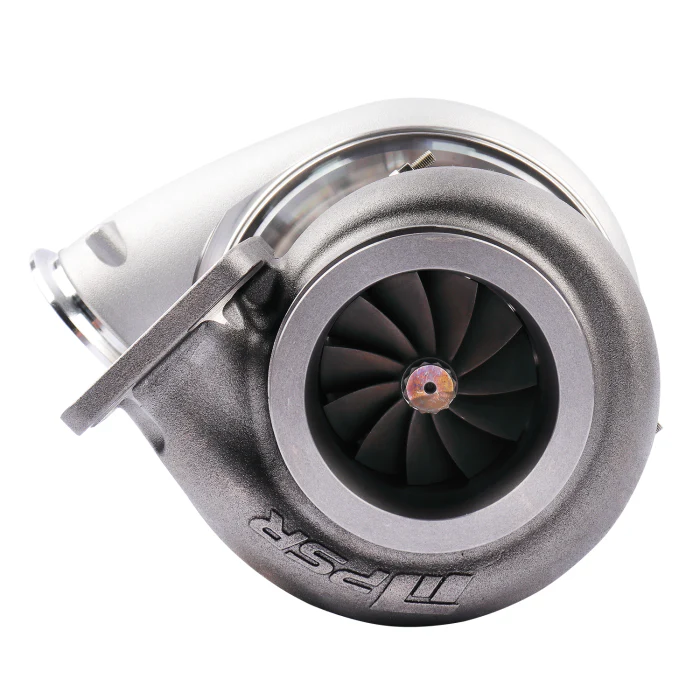

Inconel 713c 11 Blade Turbine Wheel

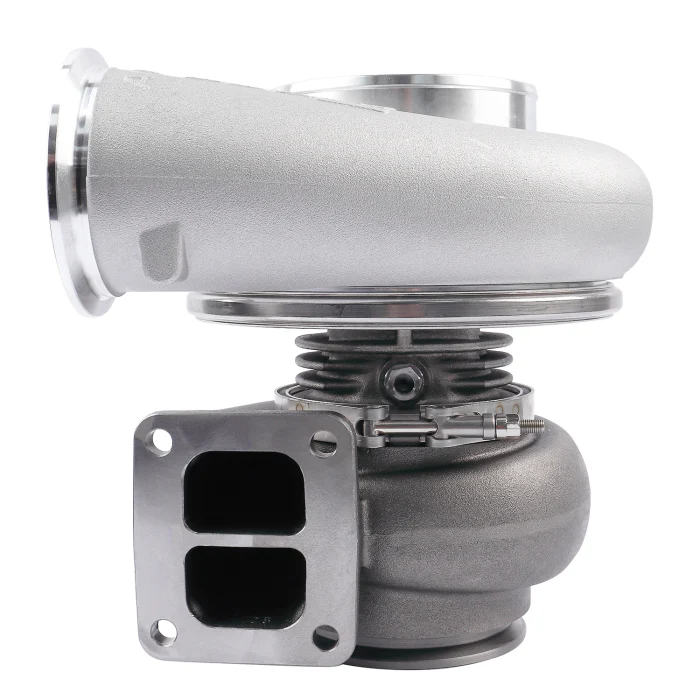

T4 divided and V-Band In/out are available in turbine housing option

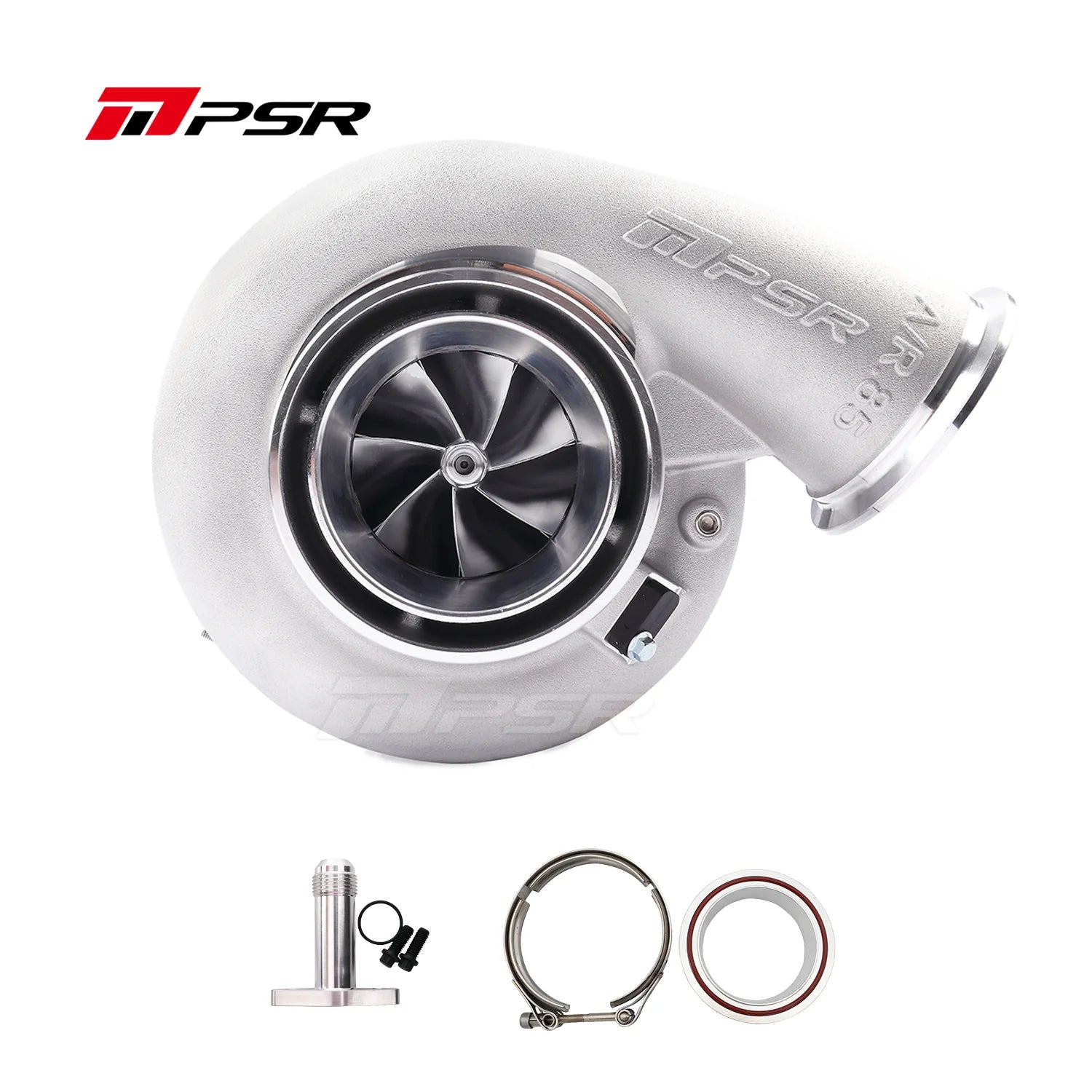

Vband Flange kit for the exhaust housing included
Billet Compressor Wheel: 76x 102.4mm, 7+7 Blade
Turbine Wheel: 85 x 89.5mm, 11 Blade
Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
Compressor Cover: 4.0” Hose Inlet/3″ V-Band Outlet
Turbine Housing: T4 Divided 1.28A/R(4″ V-band Outlet); Dual V-Band 1.15A/R(3″ V-band Inlet, 4″ V-band Outlet); Dual V-Band 1.28A/R(3″ V-band Inlet, 4″ V-band Outlet)
The internal oil feed port is 0.9mm(An oil restrictor is not needed)
Oil feed fitting: 1/8-27 NPSF
