PSR PTE 8385E Ball Bearing Turbo UP to 1700HP

PSR PTE 8385E Ball Bearing Turbo UP to 1700HP

SKU:

$2,299.00

$2,299.00

Sale Sold out

Turbine Housing Options T4 Divided 1.28 A/R Dual V Band 1.15 A/R Dual V Band 1.28 A/R Without Turbine Housing

Compressor Housing Options Standard

Quantity

Ball bearing system provides optimal turbo response & better durability by reducing the shaft-motion
Billet Compressor Wheel with Extended Tapered Tip Technology
Inconel 713c 11 Blade Turbine Wheel
T4 divided and V-Band In/out are available in turbine housing option

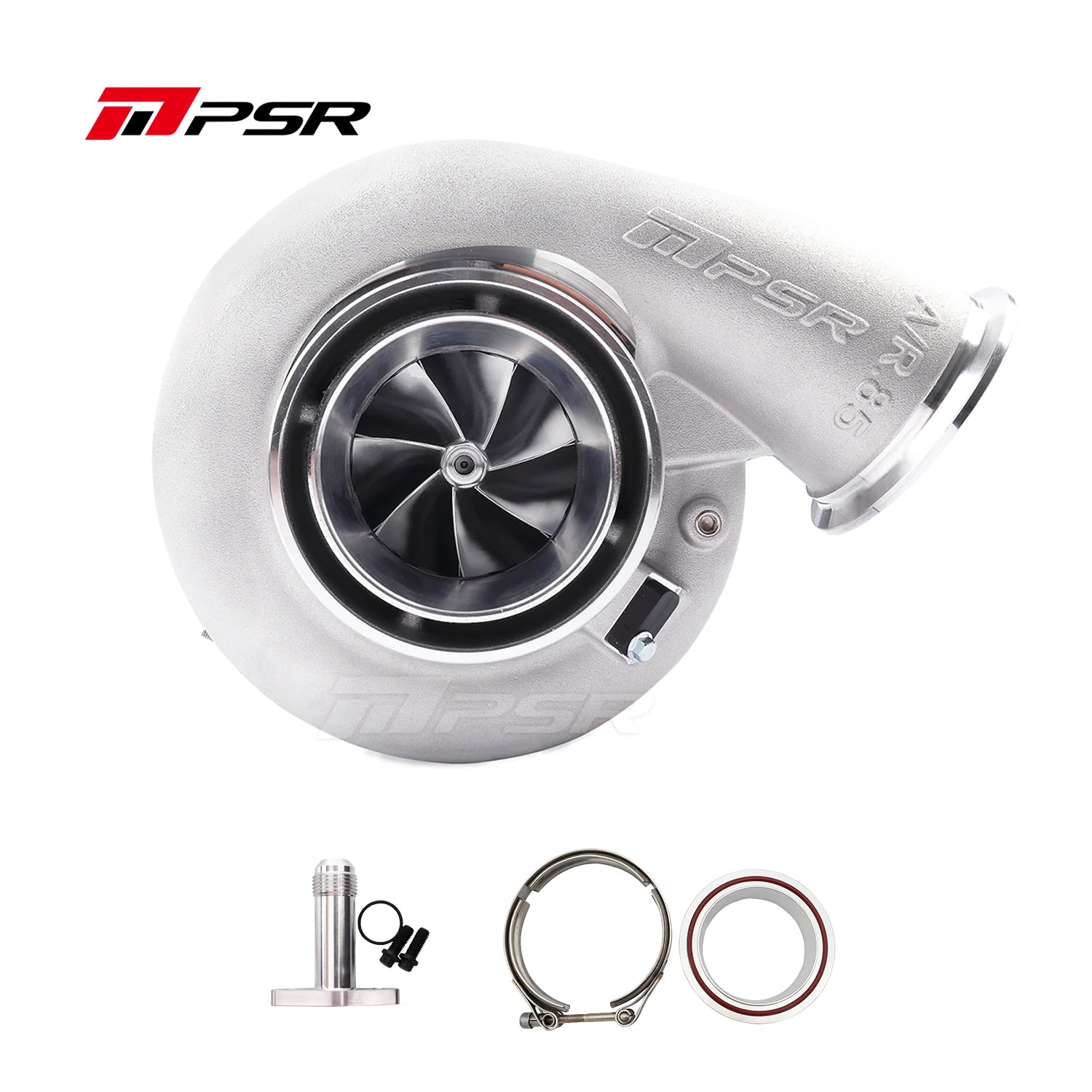

Vband Flange kit for the exhaust housing included
Max Engine Horsepower: 1700
Billet Compressor Wheel: 83x 110.5mm, 7+7 Blade
Turbine Wheel: 85 x 89.5mm, 11 Blade
Bearing System: Dual Ball Bearing (provides optimal turbo response & better durability by reducing the shaft-motion)
Compressor Cover: 4.0” Hose Inlet/3″ V-Band Outlet

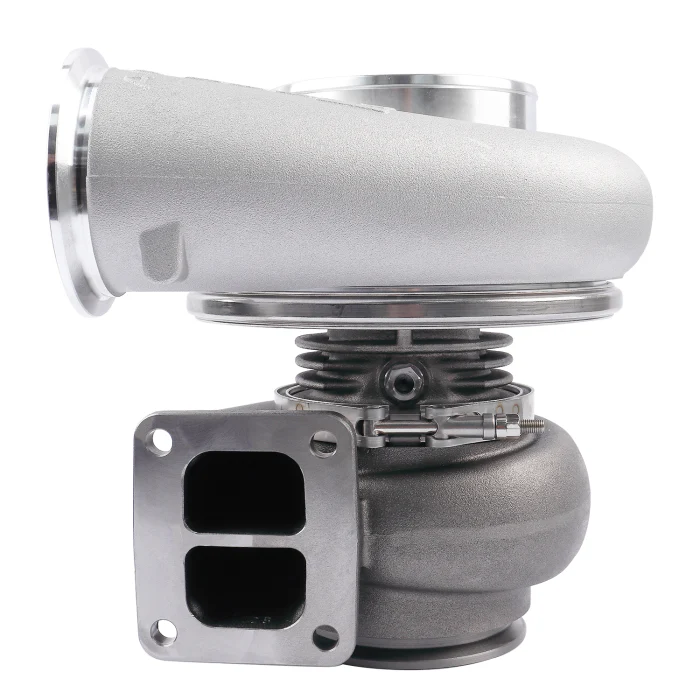

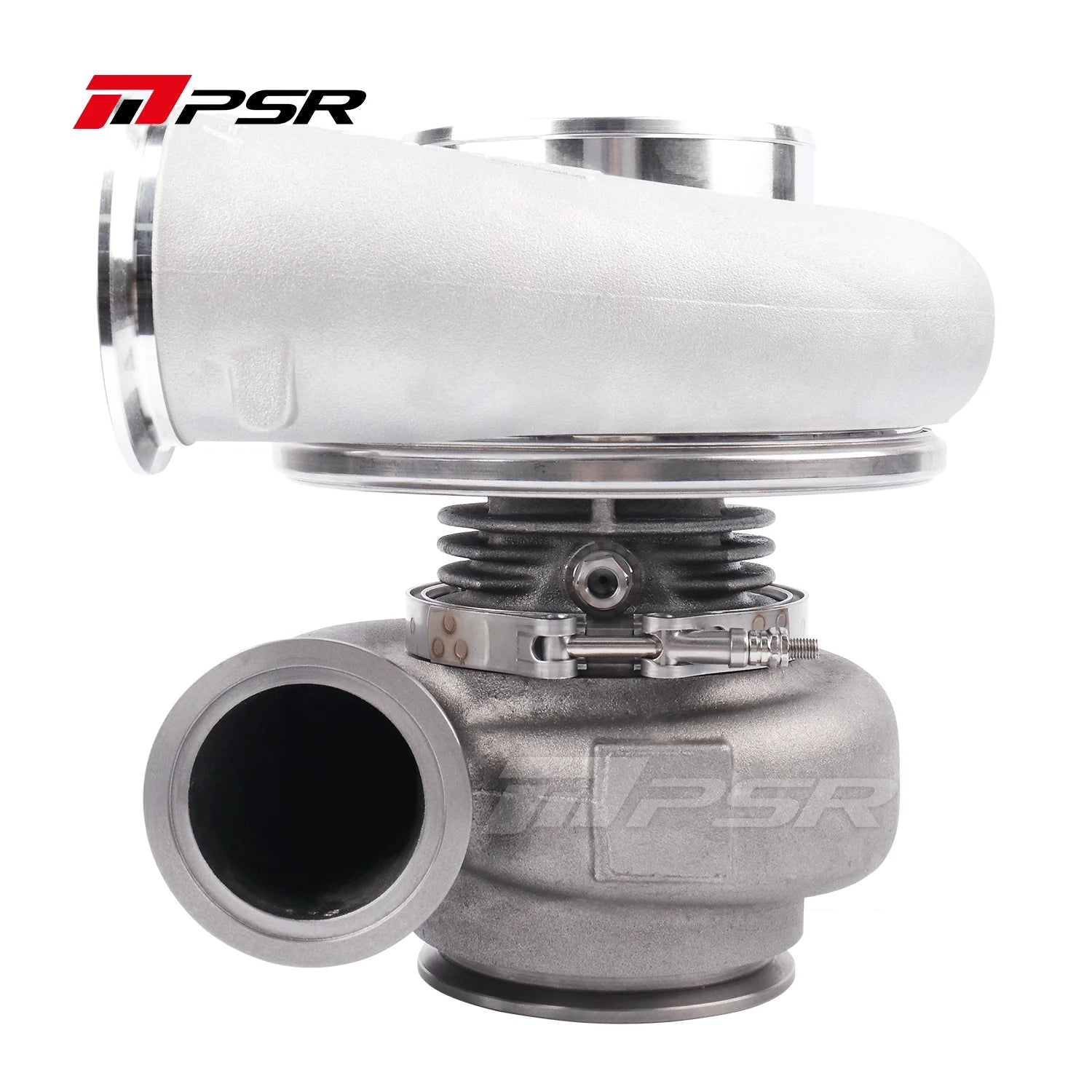

Turbine Housing: T4 Divided 1.28A/R; Dual V-Band 1.15A/R, 1.28A/R
The internal oil feed port is 0.9mm(An oil restrictor is not needed)
Oil feed fitting: 1/8-27 NPSF
Oil Drain: -12AN
