Walbro 460 Fuel Pump High Pressure

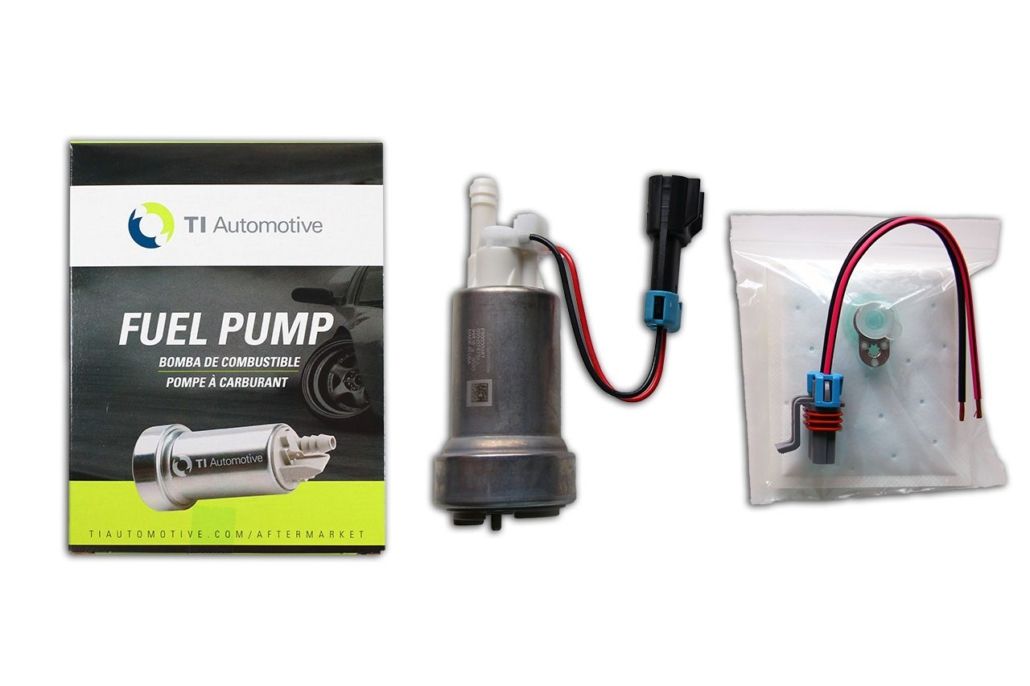

Walbro 460 lph Unleaded & E85 Safe in tank Fuel Pump. Comes complete with installation kit including fuel pump, wire harness, and pickup filter as pictured. This is a genuine locally delivered Walbro / TI Automotive fuel pump,  sourced directly from the Australian distributor and complete with hologram for authenticity verification.

The Walbro 460 / 450 lph fuel pump flow enough fuel to support over 600hp, and is ideal for high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 fuel pump won’t flow enough.

This pump is the same as a regular 460 apart from its pressure relief valve which has a higher release pressure, allowing for high boost (>30psi) setups which require extremely high fuel pressure.

Specifications

• Common names: Walbro 450, TIA485-2, GST-450, Walbro 465, 400E, Walbro 425
• Flow rate: 415lph @ 13.5v (3 bar)
• E85 Compatible: Yes
• Max current draw: 22A (15A average)
• Body Diameter: 39mm / 50mm
• Length: 131mm
• Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
• Pressure Relief: 112psi
• Check Valve: Yes (Inbuilt)
• F9000274
