Walbro 535/540 lph Fuel Pump High Pressure

Walbro / TI Automotive 535 / 540 lph High Pressure Unleaded & E85 In Tank Fuel Pump.  This is the latest and greatest version of the venerable Walbro 460 lph pump, with even higher flow than ever.

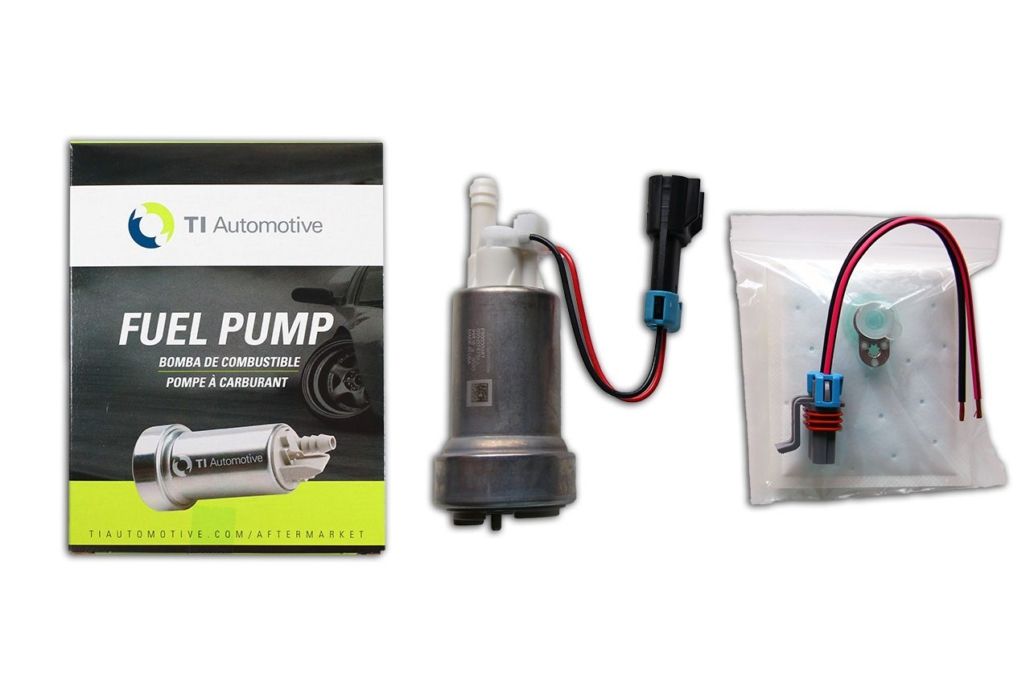

Comes complete with installation kit including fuel pump, wire harness, and pickup filter. Genuine hologrammed, locally delivered fuel pump sourced directly from the Australian distributor for Walbro / TI Automotive.

The Walbro 540lph fuel pump flows enough fuel to support 900hp and is ideal for very high power boosted applications running E85/Ethanol, or anywhere a Walbro 255 or Walbro 460 fuel pump won’t flow enough.

Specifications

• Common names: Walbro 535, Walbro 540 High Pressure, Hellcat
• Flow rate: 540lph @ 13.5v (3 bar)
• E85 Compatible: Yes
• Max current draw: 25A (Make sure your wiring can handle this beast!)
• Body Diameter: 39mm / 50mm
• Length: 131mm
• Fuel Outlet Diameter: 11mm OD (10.8 – 9.1mm)
• Pressure Relief: 112psi
• Check Valve: No
